YAGEO-CFR-25JR-52-1R5 - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	CFR-25JR-52-1R5	CFR-25JR-52-1R8	CFR-25JR-52-1K5	CFR-25JR-52-1M5	CFR-25JR-52-1R	CFR-25JR-52-1R1	CFR-25JR-52-1R2	CFR-25JR-52-1R3
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	1.5 Ohms	1.8 Ohms	1.5 kOhms	1.5 mOhms	1 Ohms	1.1 Ohms	1.2 Ohms	1.3 Ohms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	-	-	-	-	-	-	-	-
Temperature Coefficient	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	0/ -1500ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

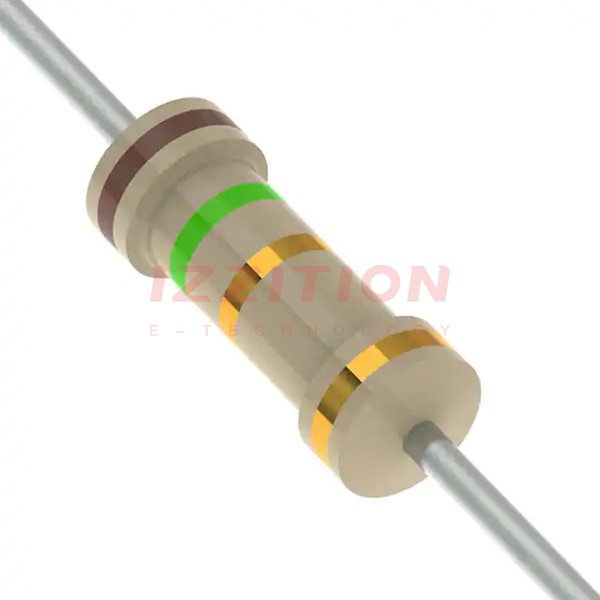

YAGEO CFR-25JR-52-1R5
