YAGEO-CFR-12JT-52-22R - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	CFR-12JT-52-22R	CFR-12JT-52-24R	CFR-12JT-52-27R	CFR-12JT-52-62R	CFR-12JT-52-12R	CFR-12JT-52-20R	CFR-12JT-52-220R	CFR-12JT-52-22K
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	22 Ohms	24 Ohms	27 Ohms	62 Ohms	12 Ohms	20 Ohms	220 Ohms	22 kOhms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	-	-	-	-	-	-	-	-
Temperature Coefficient	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

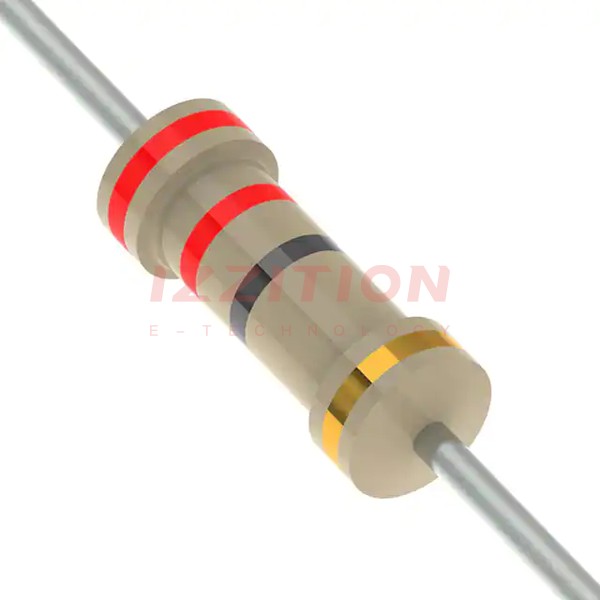

YAGEO CFR-12JT-52-22R
