YAGEO-CFR-12JR-52-27R - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	CFR-12JR-52-27R	CFR-12JR-52-47R	CFR-12JR-52-2R	CFR-12JR-52-20R	CFR-12JR-52-22R	CFR-12JR-52-24R	CFR-12JR-52-270R	CFR-12JR-52-27K
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	27 Ohms	47 Ohms	2 Ohms	20 Ohms	22 Ohms	24 Ohms	270 Ohms	27 kOhms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	-	-	-	-	-	-	-	-
Temperature Coefficient	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

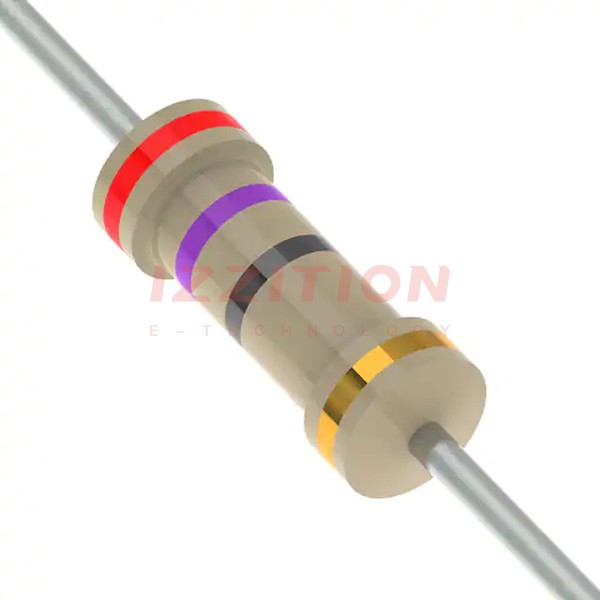

YAGEO CFR-12JR-52-27R
