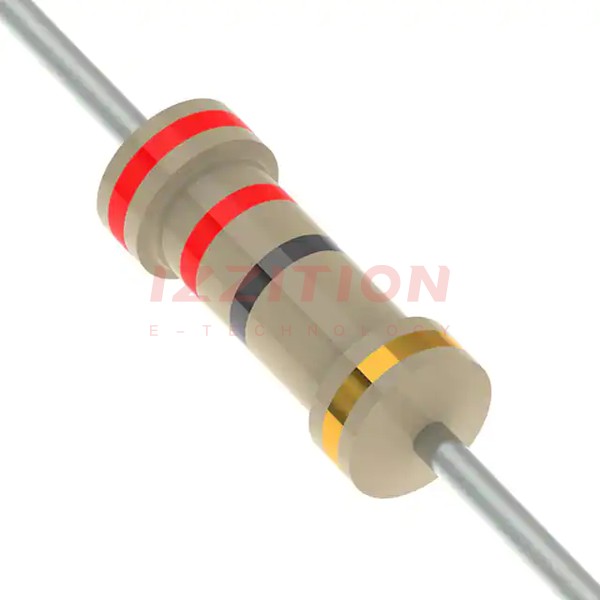

| Part Number | CFR-12JR-52-22R | CFR-12JR-52-2R | CFR-12JR-52-24R | CFR-12JR-52-27R | CFR-12JR-52-62R | CFR-12JR-52-12R | CFR-12JR-52-20R | CFR-12JR-52-220R | CFR-12JR-52-22K |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 22 Ohms | 2 Ohms | 24 Ohms | 27 Ohms | 62 Ohms | 12 Ohms | 20 Ohms | 220 Ohms | 22 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
