YAGEO-CFR-12JB-52-3R3 - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	CFR-12JB-52-3R3	CFR-12JB-52-4R3	CFR-12JB-52-3R6	CFR-12JB-52-3R9	CFR-12JB-52-1R3	CFR-12JB-52-3K3	CFR-12JB-52-3M3	CFR-12JB-52-3R
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	3.3 Ohms	4.3 Ohms	3.6 Ohms	3.9 Ohms	1.3 Ohms	3.3 kOhms	3.3 mOhms	3 Ohms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	-	-	-	-	-	-	-	-
Temperature Coefficient	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	0/ -1500ppm/°C	-500/ +350ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

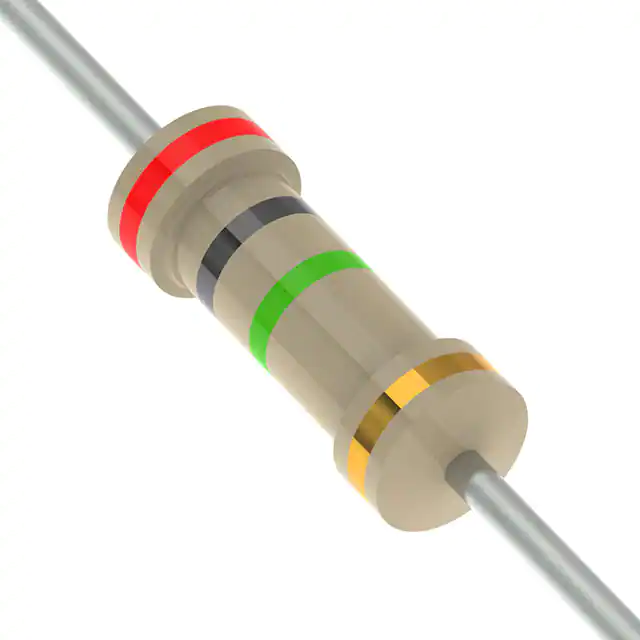

YAGEO CFR-12JB-52-3R3
