YAGEO-CFR-12JB-52-3M3 - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	CFR-12JB-52-3M3	CFR-12JB-52-4M3	CFR-12JB-52-3M9	CFR-12JB-52-3R3	CFR-12JB-52-3M6	CFR-12JB-52-1M3	CFR-12JB-52-3K3	CFR-12JB-52-3M
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	3.3 mOhms	4.3 mOhms	3.9 mOhms	3.3 Ohms	3.6 mOhms	1.3 mOhms	3.3 kOhms	3 mOhms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	-	-	-	-	-	-	-	-
Temperature Coefficient	0/ -1500ppm/°C	0/ -1500ppm/°C	0/ -1500ppm/°C	-500/ +350ppm/°C	0/ -1500ppm/°C	0/ -1500ppm/°C	-500/ +350ppm/°C	0/ -1500ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

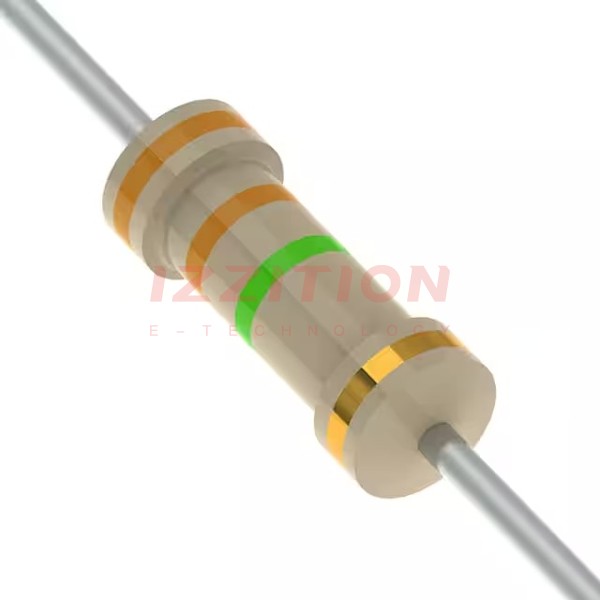

YAGEO CFR-12JB-52-3M3
