YAGEO-CFR-12JB-52-2M7 - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	CFR-12JB-52-2M7	CFR-12JB-52-4M7	CFR-12JB-52-2R7	CFR-12JB-52-2K7	CFR-12JB-52-2M	CFR-12JB-52-2M2	CFR-12JB-52-2M4
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active
Resistance	2.7 mOhms	4.7 mOhms	2.7 Ohms	2.7 kOhms	2 MOhms	2.2 mOhms	2.4 mOhms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W	0.167W, 1/6W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	-	-	-	-	-	-	-
Temperature Coefficient	0/ -1500ppm/°C	0/ -1500ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	0/ -1500ppm/°C	0/ -1500ppm/°C	0/ -1500ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)	0.075" Dia x 0.134" L (1.90mm x 3.40mm)
Height - Seated (Max)	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-

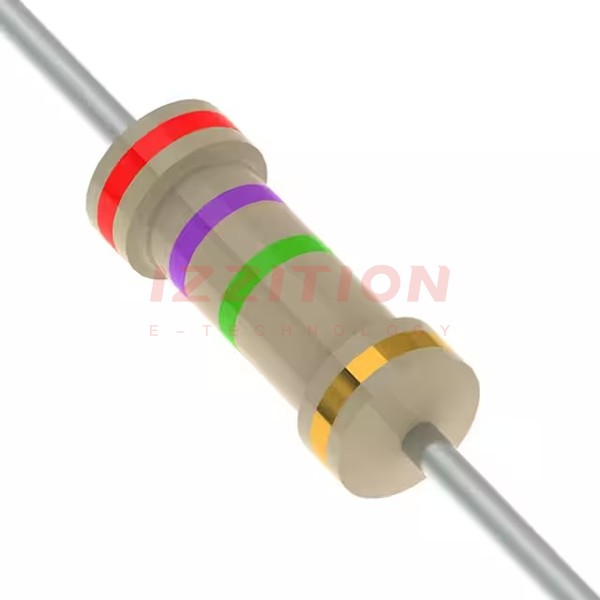

YAGEO CFR-12JB-52-2M7
