Please send RFQ , we will respond immediately.

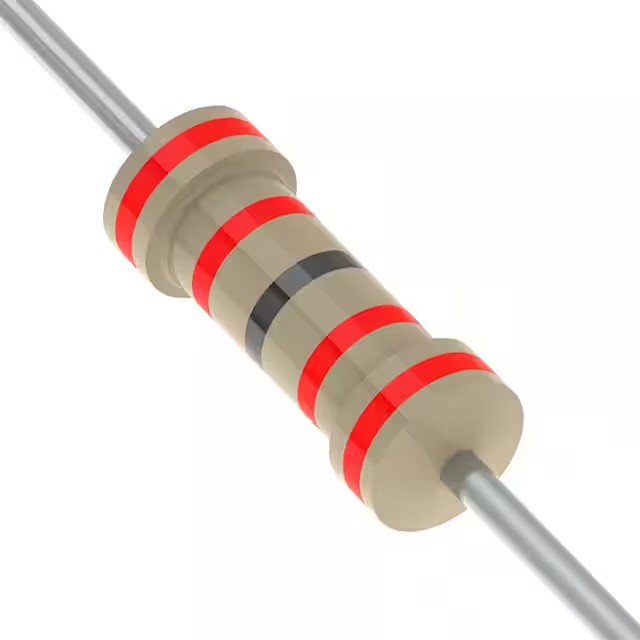

| Part Number | CFR-12GR-52-22K | CFR-12GR-52-22R | CFR-12GR-52-24K | CFR-12GR-52-27K | CFR-12GR-52-2K | CFR-12GR-52-62K | CFR-12GR-52-82K | CFR-12GR-52-12K | CFR-12GR-52-20K | CFR-12GR-52-220K |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 22 kOhms | 22 Ohms | 24 kOhms | 27 kOhms | 2 kOhms | 62 kOhms | 82 kOhms | 12 kOhms | 20 kOhms | 220 kOhms |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power (Watts) | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W | 0.167W, 1/6W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
