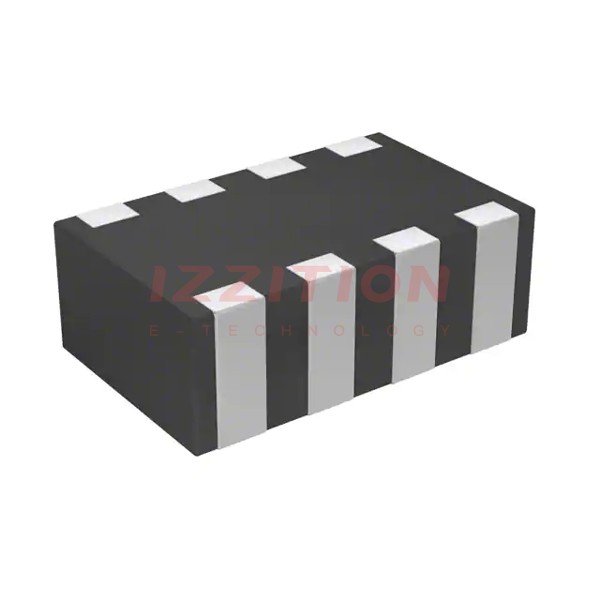

| Part Number | CA0508JRNPO9BN180 | CA0508KRNPO9BN180 | CA0508JRNPO9BN680 | CA0508JRNPO9BN181 | CA0508JRNPO9BN100 | CA0508JRNPO9BN120 | CA0508JRNPO9BN150 |
|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 18pF | 18pF | 68pF | 180pF | 10pF | 12pF | 15pF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Dielectric Material | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Number of Capacitors | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Ratings | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Supplier Device Package | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) | 0508 (1220 Metric) |
| Size / Dimension | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | - | 0.028" (0.70mm) |
