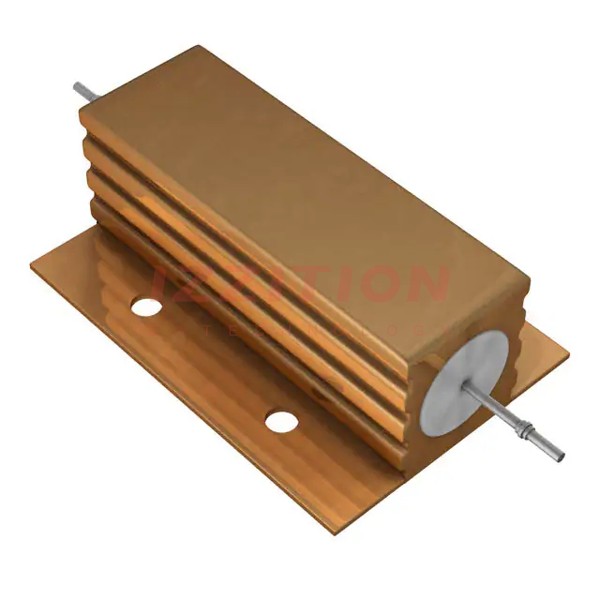

| Part Number | AHA80AFB-47R | AHA80AJB-47R | AHA50AFB-47R | AHA80AFB-27R |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Resistance | 47 Ohms | 47 Ohms | 47 Ohms | 27 Ohms |
| Tolerance | ±1% | ±5% | ±1% | ±1% |
| Power (Watts) | 80W | 80W | 50W | 80W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Features | - | - | - | - |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 2.598" L x 1.850" W (66.00mm x 47.00mm) | 2.598" L x 1.850" W (66.00mm x 47.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 2.598" L x 1.850" W (66.00mm x 47.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 1.024" (26.00mm) | 0.650" (16.50mm) | 1.024" (26.00mm) |
| Lead Style | Threaded | Threaded | Solder Lugs | Threaded |
| Package / Case | Axial, Box | Axial, Box | Axial, Box | Axial, Box |
| Failure Rate | - | - | - | - |
