Please send RFQ , we will respond immediately.

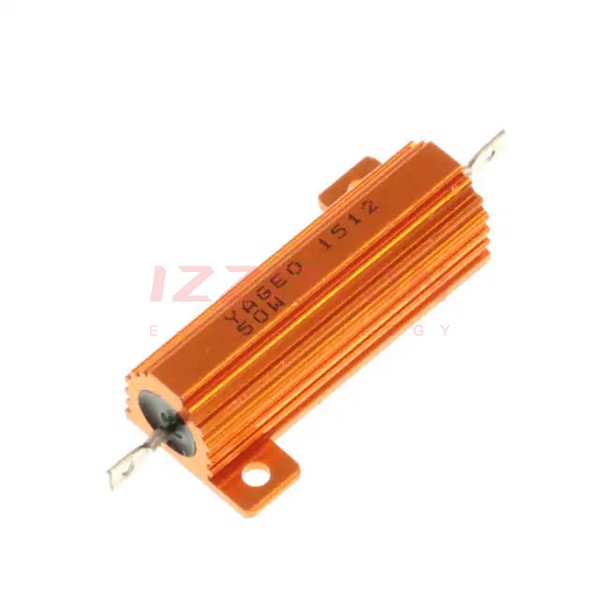

| Part Number | AHA50AFB-5R | AHA50AFB-6R | AHA50AFB-75R | AHA50AFB-15R | AHA50AFB-1R | AHA50AFB-25R | AHA50AFB-2R | AHA50AFB-3R | AHA50AFB-50R | AHA50AFB-56R |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 5 Ohms | 6 Ohms | 75 Ohms | 15 Ohms | 1 Ohms | 25 Ohms | 2 Ohms | 3 Ohms | 50 Ohms | 56 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 50W | 50W | 50W | 50W | 50W | 50W | 50W | 50W | 50W | 50W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Features | - | - | - | - | - | - | - | - | - | - |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) | 1.969" L x 1.142" W (50.00mm x 29.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
