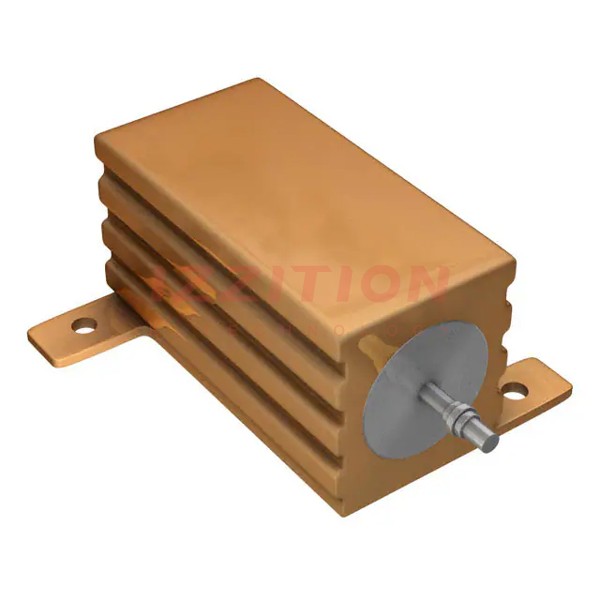

| Part Number | AHA10BJB-18R | AHA10BFB-18R | AHA10BJB-10R | AHA10BJB-12R | AHA10BJB-15R |
|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 18 Ohms | 18 Ohms | 10 Ohms | 12 Ohms | 15 Ohms |
| Tolerance | ±5% | ±1% | ±5% | ±5% | ±5% |
| Power (Watts) | 100W | 100W | 100W | 100W | 100W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Features | - | - | - | - | - |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 3.504" L x 2.756" W (89.00mm x 70.00mm) | 3.504" L x 2.756" W (89.00mm x 70.00mm) | 3.504" L x 2.756" W (89.00mm x 70.00mm) | 3.504" L x 2.756" W (89.00mm x 70.00mm) | 3.504" L x 2.756" W (89.00mm x 70.00mm) |
| Height - Seated (Max) | 1.795" (45.60mm) | 1.795" (45.60mm) | 1.795" (45.60mm) | 1.795" (45.60mm) | 1.795" (45.60mm) |
| Lead Style | M4 Threaded | M4 Threaded | M4 Threaded | M4 Threaded | M4 Threaded |
| Package / Case | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box |
| Failure Rate | - | - | - | - | - |
