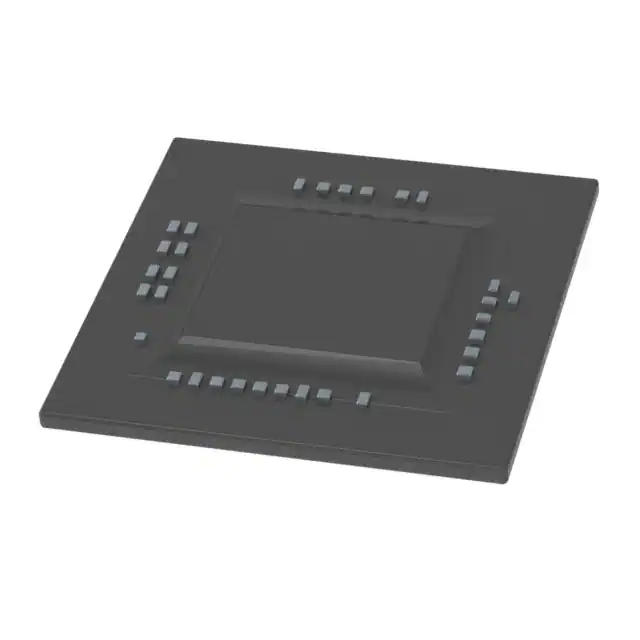

| Part Number | XCZU7EG-1FBVB900E | XCZU7EV-1FBVB900E | XCZU7EG-1FBVB900I | XCZU7EG-2FBVB900E | XCZU7EG-3FBVB900E | XCZU5EG-1FBVB900E | XCZU7CG-1FBVB900E |
|---|---|---|---|---|---|---|---|
| Manufacturer | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Architecture | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA |
| Core Processor | Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ | ||||||
| Flash Size | - | - | - | - | - | - | - |
| RAM Size | 256KB | 256KB | 256KB | 256KB | 256KB | 256KB | 256KB |
| Peripherals | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT | DMA, WDT |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Speed | 500MHz, 600MHz, 1.2GHz | 500MHz, 600MHz, 1.2GHz | 500MHz, 600MHz, 1.2GHz | 533MHz, 600MHz, 1.3GHz | 600MHz, 667MHz, 1.5GHz | 500MHz, 600MHz, 1.2GHz | 500MHz, 1.2GHz |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 504K+ Logic Cells | Zynq®UltraScale+™ FPGA, 504K+ Logic Cells | Zynq®UltraScale+™ FPGA, 504K+ Logic Cells | Zynq®UltraScale+™ FPGA, 504K+ Logic Cells | Zynq®UltraScale+™ FPGA, 504K+ Logic Cells | Zynq®UltraScale+™ FPGA, 256K+ Logic Cells | Zynq®UltraScale+™ FPGA, 504K+ Logic Cells |
| Operating Temperature | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) |
| Package / Case | 900-BBGA, FCBGA | 900-BBGA, FCBGA | 900-BBGA, FCBGA | 900-BBGA, FCBGA | 900-BBGA, FCBGA | 900-BBGA, FCBGA | 900-BBGA, FCBGA |
| Supplier Device Package | 900-FCBGA (31x31) | 900-FCBGA (31x31) | 900-FCBGA (31x31) | 900-FCBGA (31x31) | 900-FCBGA (31x31) | 900-FCBGA (31x31) | 900-FCBGA (31x31) |
