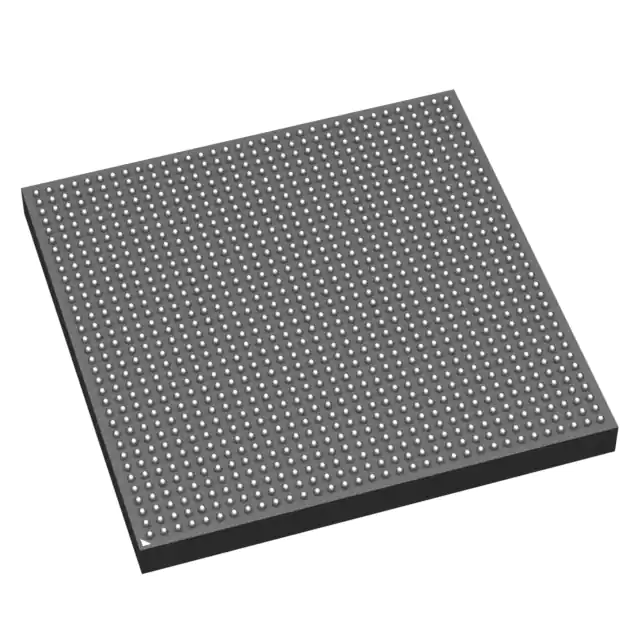

| Part Number | XCZU43DR-2FFVE1156E | XCZU47DR-2FFVE1156E | XCZU43DR-2FSVE1156E | XCZU43DR-2FFVE1156I | XCZU48DR-2FFVE1156E | XCZU42DR-2FFVE1156E | XCZU43DR-1FFVE1156E |
|---|---|---|---|---|---|---|---|
| Manufacturer | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx | AMD Xilinx |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Architecture | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA | MCU, FPGA |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| Flash Size | - | - | - | - | - | - | - |
| RAM Size | 256KB | 256KB | 256KB | 256KB | 256KB | 256KB | 256KB |
| Peripherals | DDR, DMA, PCIe | DMA, WDT | DDR, DMA, PCIe | DDR, DMA, PCIe | DDR, DMA, PCIe | DDR, DMA, PCIe | DDR, DMA, PCIe |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Speed | 533MHz, 1.333GHz | 533MHz, 1.333GHz | 533MHz, 1.333GHz | 533MHz, 1.333GHz | 533MHz, 1.333GHz | 533MHz, 1.333GHz | 500MHz, 1.2GHz |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells | Zynq®UltraScale+™ FPGA, 489K+ Logic Cells | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells |
| Operating Temperature | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | -40°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) | 0°C ~ 100°C (TJ) |
| Package / Case | 1156-BBGA, FCBGA | 1156-BBGA, FCBGA | 1156-BBGA, FCBGA | 1156-BBGA, FCBGA | 1156-BBGA, FCBGA | 1156-BBGA, FCBGA | 1156-BBGA, FCBGA |
| Supplier Device Package | 1156-FCBGA (35x35) | 1156-FCBGA (35x35) | 1156-FCBGA (35x35) | 1156-FCBGA (35x35) | 1156-FCBGA (35x35) | 1156-FCBGA (35x35) | 1156-FCBGA (35x35) |
