XC2S300E-6PQG208C
  • Share:

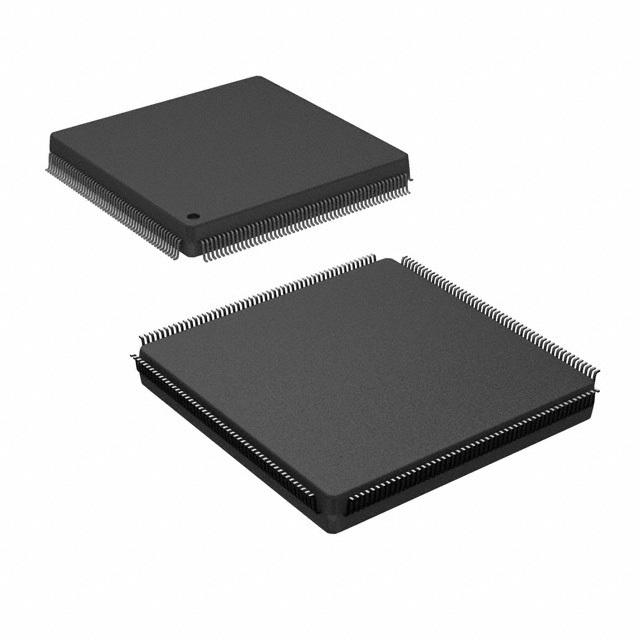

AMD Xilinx XC2S300E-6PQG208C

Manufacturer No:
XC2S300E-6PQG208C
Manufacturer:
AMD Xilinx
Package:
Tray
Datasheet:
XC2S300E-6PQG208C Datasheet
ECAD Model:
-
Description:
IC FPGA 146 I/O 208QFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The XC2S300E-6PQG208C is a Field Programmable Gate Array (FPGA) from the Spartan-IIE family, manufactured by Xilinx. This device is part of the 300K gate series and is known for its versatility and performance in various electronic systems. However, it is important to note that the XC2S300E-6PQG208C is now obsolete and no longer in production.

Key Specifications

Parameter Value
Family Spartan-IIE
Number of Gates 300K
Number of Cells 6912
Maximum Frequency 357MHz
Technology Node 0.15um
Supply Voltage 1.8V
Package Type 208-Pin HSPQFP EP

Key Features

  • High-density logic with 300K gates and 6912 cells, making it suitable for complex digital designs.
  • Operates at a maximum frequency of 357MHz, ensuring high-speed performance.
  • Manufactured using 0.15um technology, which provides a balance between performance and power consumption.
  • Runs on a 1.8V supply voltage, which is compatible with many modern electronic systems.
  • Packaged in a 208-Pin HSPQFP EP, offering a compact and reliable form factor.

Applications

The XC2S300E-6PQG208C FPGA is versatile and can be used in a variety of applications, including:

  • Embedded systems requiring high logic density and performance.
  • Communication systems, such as telecommunications and networking equipment.
  • Industrial control systems that need programmable logic for complex tasks.
  • Aerospace and defense applications where reliability and performance are critical.
  • Consumer electronics that require customizable digital logic.

Q & A

  1. What is the XC2S300E-6PQG208C?

    The XC2S300E-6PQG208C is a Field Programmable Gate Array (FPGA) from the Spartan-IIE family manufactured by Xilinx.

  2. What are the key specifications of the XC2S300E-6PQG208C?

    It has 300K gates, 6912 cells, operates at up to 357MHz, uses 0.15um technology, and runs on 1.8V with a 208-Pin HSPQFP EP package.

  3. Is the XC2S300E-6PQG208C still in production?

    No, the XC2S300E-6PQG208C is obsolete and no longer manufactured.

  4. What are some common applications for the XC2S300E-6PQG208C?

    It is used in embedded systems, communication systems, industrial control systems, aerospace and defense, and consumer electronics.

  5. What is the maximum operating frequency of the XC2S300E-6PQG208C?

    The maximum operating frequency is 357MHz.

  6. What is the supply voltage for the XC2S300E-6PQG208C?

    The supply voltage is 1.8V.

  7. What package type does the XC2S300E-6PQG208C use?

    The package type is 208-Pin HSPQFP EP.

  8. Why is the XC2S300E-6PQG208C no longer manufactured?

    The reason for its obsolescence is not specified, but it is common for older components to be phased out as newer technologies emerge.

  9. Are there any substitutes available for the XC2S300E-6PQG208C?

    Yes, there are substitutes available, such as the T13F256C3 from Efinix, Inc..

  10. Where can I find more detailed documentation for the XC2S300E-6PQG208C?

    More detailed documentation can be found on the Xilinx website or through authorized distributors.

Product Attributes

Number of LABs/CLBs:1536
Number of Logic Elements/Cells:6912
Total RAM Bits:65536
Number of I/O:146
Number of Gates:300000
Voltage - Supply:1.71V ~ 1.89V
Mounting Type:Surface Mount
Operating Temperature:0°C ~ 85°C (TJ)
Package / Case:208-BFQFP
Supplier Device Package:208-PQFP (28x28)
0 Remaining View Similar

In Stock

-
41

Please send RFQ , we will respond immediately.

Similar Products

Part Number XC2S300E-6PQG208C XC2S300E-6PQG208I   XC2S100E-6PQG208C   XC2S200E-6PQG208C   XC2S300E-6PQ208C
Manufacturer AMD Xilinx AMD Xilinx AMD Xilinx AMD Xilinx AMD Xilinx
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Number of LABs/CLBs 1536 1536 600 1176 1536
Number of Logic Elements/Cells 6912 6912 2700 5292 6912
Total RAM Bits 65536 65536 40960 57344 65536
Number of I/O 146 146 146 146 146
Number of Gates 300000 300000 100000 200000 300000
Voltage - Supply 1.71V ~ 1.89V 1.71V ~ 1.89V 1.71V ~ 1.89V 1.71V ~ 1.89V 1.71V ~ 1.89V
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Operating Temperature 0°C ~ 85°C (TJ) -40°C ~ 100°C (TJ) 0°C ~ 85°C (TJ) 0°C ~ 85°C (TJ) 0°C ~ 85°C (TJ)
Package / Case 208-BFQFP 208-BFQFP 208-BFQFP 208-BFQFP 208-BFQFP
Supplier Device Package 208-PQFP (28x28) 208-PQFP (28x28) 208-PQFP (28x28) 208-PQFP (28x28) 208-PQFP (28x28)
