Please send RFQ , we will respond immediately.

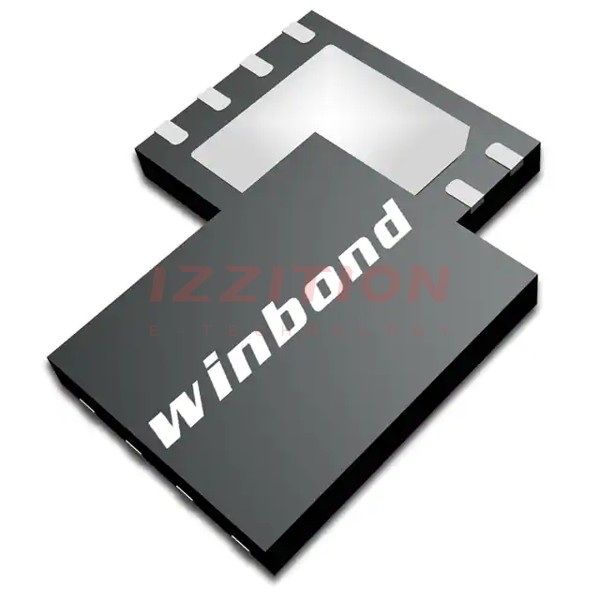

| Part Number | W29N01HWSINA TR | W29N01HZSINA TR | W29N01HWSINF TR | W29N01HVSINA TR | W29N01HWBINA TR | W29N01HWDINA TR |
|---|---|---|---|---|---|---|
| Manufacturer | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Memory Format | Flash | Flash | Flash | Flash | Flash | Flash |
| Technology | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) |
| Memory Size | 1Gb (64M x 16) | 1Gb (128M x 8) | 1Gb (64M x 16) | 16Mb (2M x 8) | 1Gb (64M x 16) | 1Gb (64M x 16) |
| Memory Interface | ONFI | ONFI | ONFI | SPI - Quad I/O, QPI, DTR | ONFI | ONFI |
| Clock Frequency | - | - | - | 133 MHz | - | - |
| Write Cycle Time - Word, Page | 25ns | 25ns | 25ns | 3ms | 25ns | 25ns |
| Access Time | 22 ns | 22 ns | 22 ns | 6 ns | 22 ns | 22 ns |
| Voltage - Supply | 1.7V ~ 1.95V | 1.7V ~ 1.95V | 1.7V ~ 1.95V | 1.65V ~ 1.95V | 1.7V ~ 1.95V | 1.7V ~ 1.95V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-TFSOP (0.724", 18.40mm Width) | 48-TFSOP (0.724", 18.40mm Width) | 48-TFSOP (0.724", 18.40mm Width) | 48-TFSOP (0.724", 18.40mm Width) | 63-VFBGA | 48-VFBGA |
| Supplier Device Package | 48-TSOP | 48-TSOP | 48-TSOP | 48-TSOP | 63-VFBGA (9x11) | 48-VFBGA (8x6.5) |
