Please send RFQ , we will respond immediately.

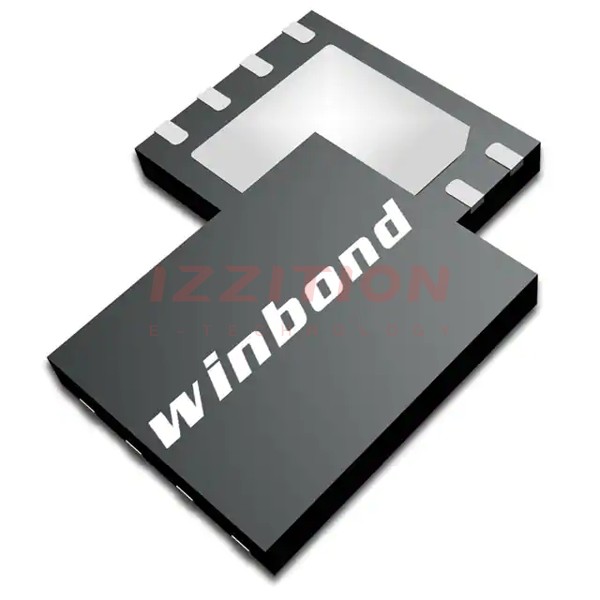

| Part Number | W29N01HVBINF TR | W29N01HVSINF TR | W29N01HVDINF TR | W29N01HZBINF TR | W29N01HWBINF TR | W29N01HVBINA TR |
|---|---|---|---|---|---|---|
| Manufacturer | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Memory Format | Flash | Flash | Flash | Flash | Flash | Flash |
| Technology | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) | FLASH - NAND (SLC) |
| Memory Size | 1Gb (128M x 8) | 1Gb (128M x 8) | 1Gb (128M x 8) | 1Gb (128M x 8) | 1Gb (64M x 16) | 16Mb (2M x 8) |
| Memory Interface | Parallel | Parallel | Parallel | ONFI | ONFI | SPI - Quad I/O, QPI, DTR |
| Clock Frequency | - | - | - | - | - | 133 MHz |
| Write Cycle Time - Word, Page | 25ns | 25ns | 25ns | 25ns | 25ns | 3ms |
| Access Time | 20 ns | 20 ns | 20 ns | 22 ns | 22 ns | 6 ns |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 1.7V ~ 1.95V | 1.7V ~ 1.95V | 1.65V ~ 1.95V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 63-VFBGA | 48-TFSOP (0.724", 18.40mm Width) | 48-VFBGA | 63-VFBGA | 63-VFBGA | 63-VFBGA |
| Supplier Device Package | 63-VFBGA (9x11) | 48-TSOP | 48-VFBGA (8x6.5) | 63-VFBGA (9x11) | 63-VFBGA (9x11) | 63-VFBGA (9x11) |
