| Part Number | W25Q80BVZPIG | W25Q80DVZPIG | W25Q80BWZPIG | W25Q80BVZPSG | W25Q80BLZPIG | W25Q80BVZPAG | W25Q80BVZPBG |
|---|---|---|---|---|---|---|---|
| Manufacturer | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics | Winbond Electronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Memory Format | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| Technology | FLASH - NOR | FLASH - NOR | FLASH - NOR | FLASH - NOR | FLASH - NOR | FLASH - NOR | FLASH - NOR |
| Memory Size | 8Mb (1M x 8) | 8Mb (1M x 8) | 8Mb (1M x 8) | 8Mb (1M x 8) | 8Mb (1M x 8) | 8Mb (1M x 8) | 8Mb (1M x 8) |
| Memory Interface | SPI - Quad I/O | SPI - Quad I/O | SPI - Quad I/O | SPI - Quad I/O | SPI - Quad I/O | SPI - Quad I/O | SPI - Quad I/O |
| Clock Frequency | 104 MHz | 104 MHz | 80 MHz | 104 MHz | 80 MHz | 104 MHz | 104 MHz |
| Write Cycle Time - Word, Page | 3ms | 3ms | 800µs | 50µs, 3ms | 800µs | 50µs, 3ms | 50µs, 3ms |
| Access Time | - | - | - | 6 ns | - | 6 ns | 6 ns |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 1.65V ~ 1.95V | 2.5V ~ 3.6V | 2.3V ~ 3.6V | 2.5V ~ 3.6V | 2.5V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

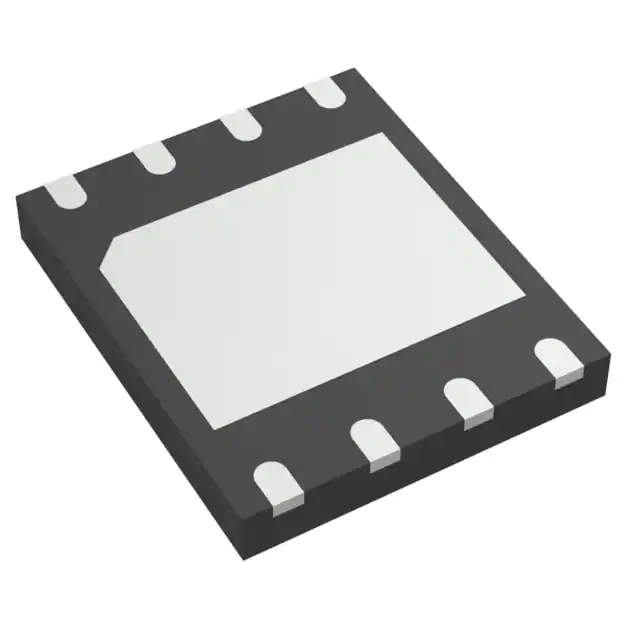

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (6x5) | 8-WSON (6x5) | 8-WSON (6x5) | 8-WSON (6x5) | 8-WSON (6x5) | 8-WSON (6x5) | 8-WSON (6x5) |
