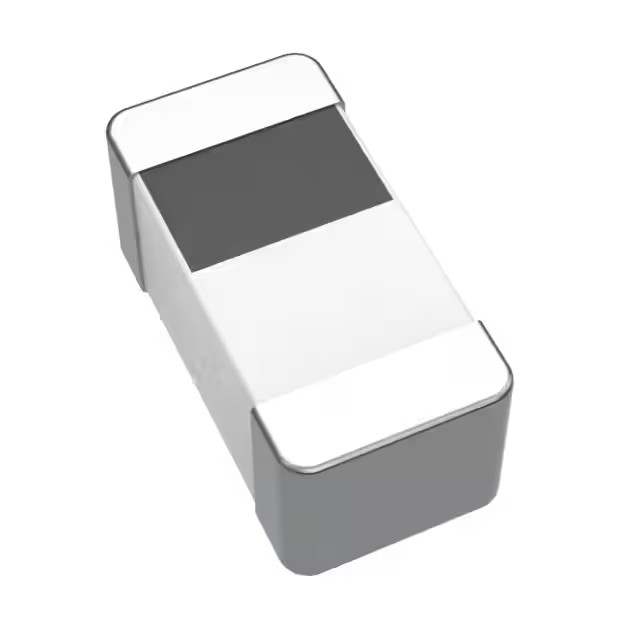

| Part Number | WLCM0603TGJ12NTB | WLCM0603TGJ15NTB | WLCM0603TGJ22NTB | WLCM0603TGJ18NTB | WLCM0603TGJ10NTB |
|---|---|---|---|---|---|
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| Product Status | Active | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 12 nH | 15 nH | 22 nH | 18 nH | 10 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 250 mA | 250 mA | 150 mA | 200 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 750mOhm Max | 850mOhm Max | 1.2Ohm Max | 1Ohm Max | 700mOhm Max |
| Q @ Freq | 11 @ 500MHz | 11 @ 500MHz | 9 @ 500MHz | 11 @ 500MHz | 11 @ 500MHz |
| Frequency - Self Resonant | 3.7GHz | 3.1GHz | 2.5GHz | 2.8GHz | 4GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 | 0201 | 0201 | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
