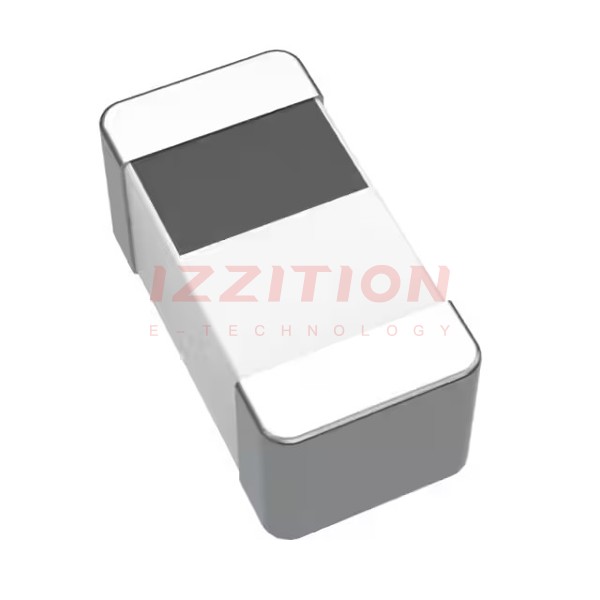

| Part Number | WLCM0603TGB3N6TB | WLCM0603TGB3N9TB | WLCM0603TGB3N0TB | WLCM0603TGB3N3TB |
|---|---|---|---|---|
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| Product Status | Active | Active | Active | Active |
| Type | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic | Ceramic | Ceramic |
| Inductance | 3.6 nH | 3.9 nH | 3 nH | 3.3 nH |
| Tolerance | ±0.1nH | ±0.1nH | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 400 mA | 350 mA | 450 mA | 400 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 300mOhm Max | 350mOhm Max | 250mOhm Max | 300mOhm Max |
| Q @ Freq | 12 @ 500MHz | 12 @ 500MHz | 12 @ 500MHz | 12 @ 500MHz |
| Frequency - Self Resonant | 8GHz | 6.5GHz | 9.5GHz | 9.5GHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 | 0201 | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
