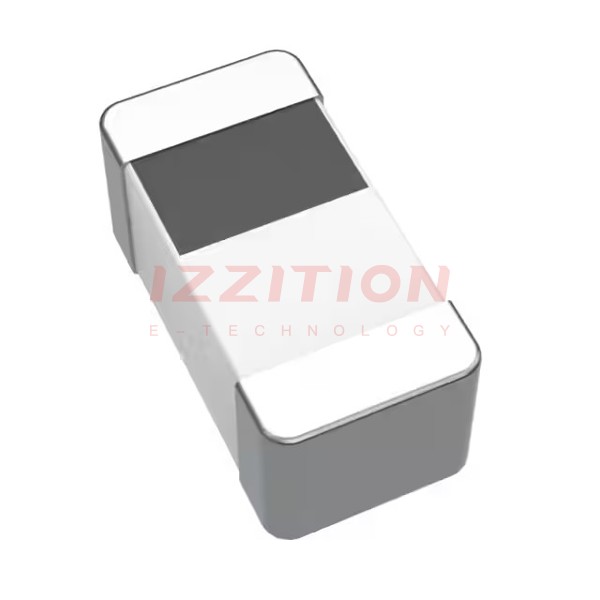

| Part Number | WLCM0603TGB0N7TB | WLCM0603TGB0N8TB |
|---|---|---|
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation |
| Product Status | Active | Active |
| Type | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic |
| Inductance | 0.7 nH | 0.8 nH |
| Tolerance | ±0.1nH | ±0.1nH |
| Current Rating (Amps) | 750 mA | 750 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 90mOhm Max | 100mOhm Max |
| Q @ Freq | 12 @ 500MHz | 12 @ 500MHz |
| Frequency - Self Resonant | 18GHz | 18GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) |
