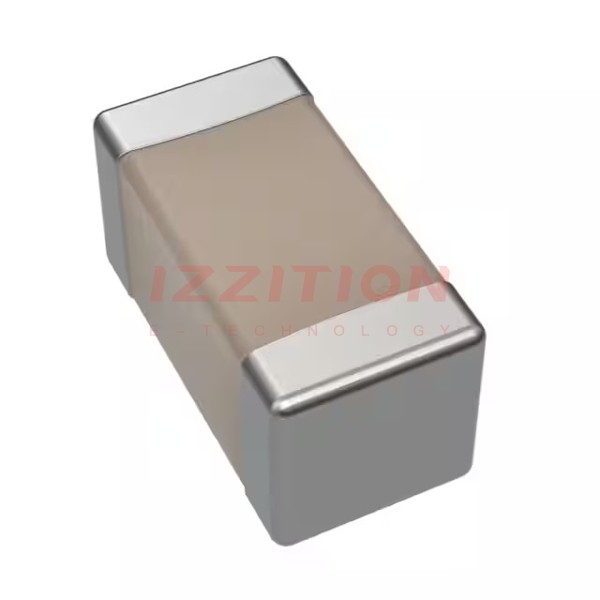

| Part Number | WLBD1005K2U600TP | WLBD1005K2U601TP | WLBD1005K2U300TP |
|---|---|---|---|
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| Product Status | Active | Active | Active |
| Filter Type | - | - | - |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 60 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 30 Ohms @ 100 MHz |
| Current Rating (Max) | 300mA | 300mA | 300mA |
| DC Resistance (DCR) (Max) | 350mOhm | 1Ohm | 250mOhm |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - | - | - |
