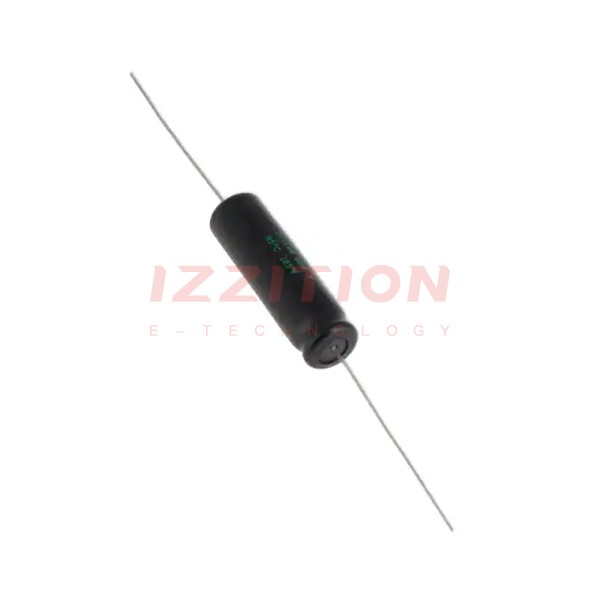

| Part Number | TVA1413 | TVA1613 | TVA1403 | TVA1410 | TVA1411 | TVA1412 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 40 µF | 60 µF | 5 µF | 20 µF | 25 µF | 30 µF |
| Tolerance | - | - | - | - | - | - |
| Voltage - Rated | 150 V | 350 V | 150 V | 150 V | 150 V | 150 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | - | - | - | - | - | - |
| Ripple Current @ High Frequency | - | - | - | - | - | - |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.438" Dia x 1.500" L (11.12mm x 38.10mm) | 0.875" Dia x 2.125" L (22.22mm x 53.98mm) | 0.312" Dia x 0.812" L (7.92mm x 20.62mm) | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | 0.438" Dia x 1.250" W (11.12mm x 31.75mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
