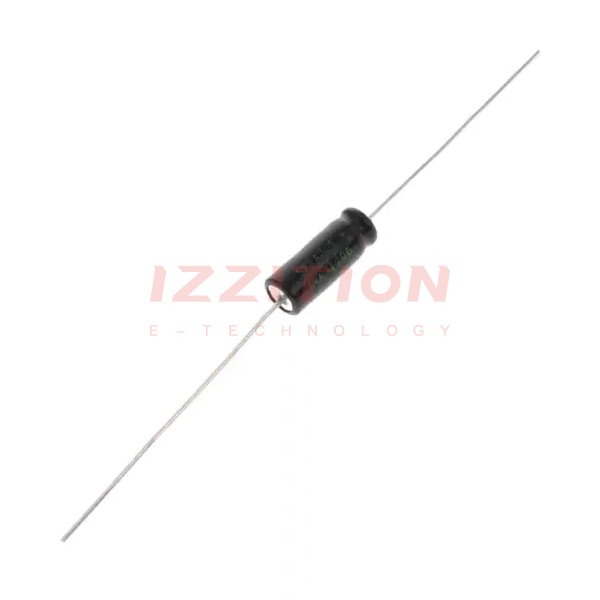

| Part Number | TVA1206-E3 | TVA1306-E3 | TVA1207-E3 | TVA1406-E3 | TVA1208-E3 | TVA1209-E3 | TVA1204-E3 | TVA1205-E3 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 50 µF | 25 µF | 100 µF | 10 µF | 250 µF | 500 µF | 10 µF | 25 µF |
| Tolerance | - | - | - | - | - | - | - | - |
| Voltage - Rated | 25 V | 50 V | 25 V | 150 V | 25 V | 25 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | - | - | - | - | - | - | - | - |
| Ripple Current @ High Frequency | - | - | - | - | - | - | - | - |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.250" Dia x 0.687" L (6.35mm x 17.45mm) | 0.250" Dia x 0.687" L (6.35mm x 17.45mm) | 0.312" Dia x 0.812" L (7.92mm x 20.62mm) | 0.375" Dia x 0.812" L (9.52mm x 20.62mm) | 0.375" Dia x 0.937" L (9.52mm x 23.80mm) | 0.438" Dia x 1.250" W (11.12mm x 31.75mm) | 0.250" Dia x 0.500" L (6.35mm x 12.70mm) | 0.250" Dia x 0.500" L (6.35mm x 12.70mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
