Please send RFQ , we will respond immediately.

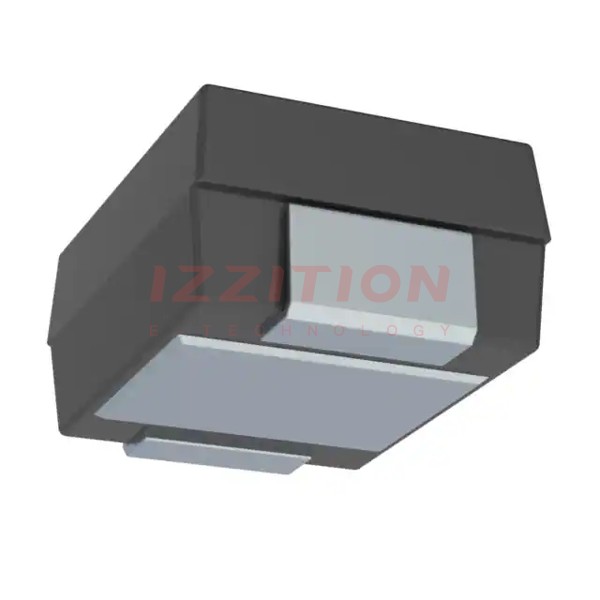

| Part Number | TR3W107K020C0100 | TR3W107K025C0100 | TR3W157K020C0100 | TR3E107K020C0100 |
|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 20 V | 25 V | 20 V | 20 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 100mOhm | 100mOhm | 100mOhm | 100mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2924 (7360 Metric) | 2924 (7361 Metric) | 2924 (7360 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.170" (4.32mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | W | W | W | E |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
