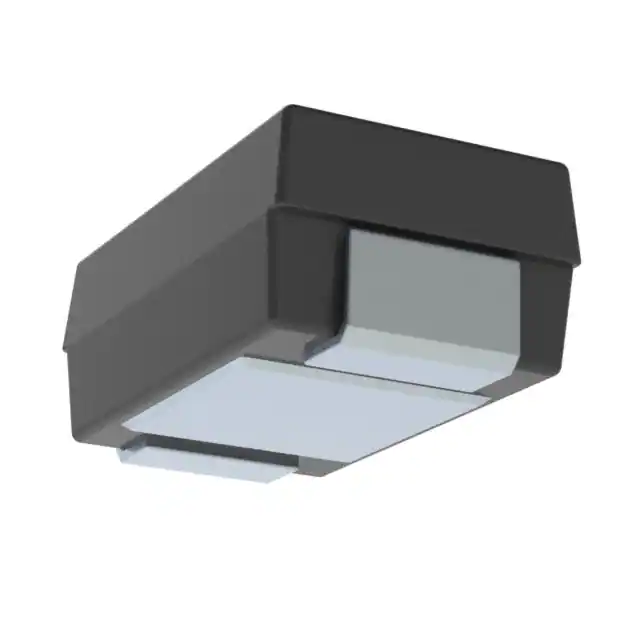

| Part Number | TR3D686K020C0175 | TR3D686M020C0175 | TR3D686K020C0115 |
|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active |
| Capacitance | 68 µF | 68 µF | 68 µF |
| Tolerance | ±10% | ±20% | ±10% |
| Voltage - Rated | 20 V | 20 V | 20 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 175mOhm | 175mOhm | 115mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D | D | D |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
