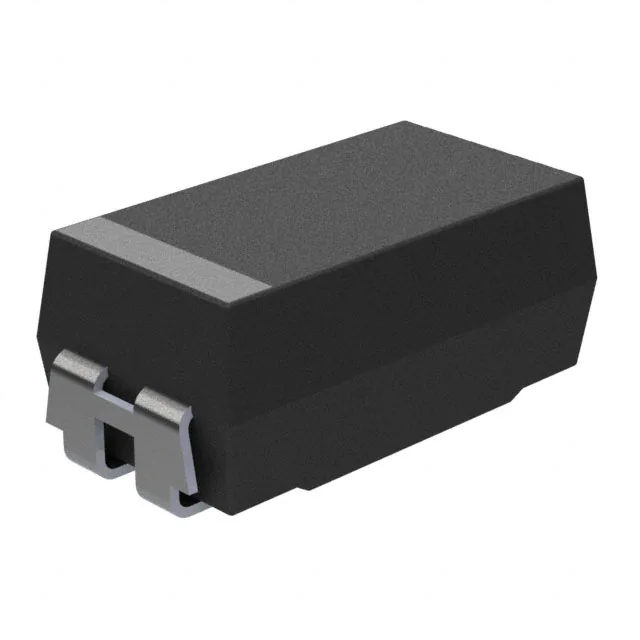

| Part Number | TMCMC1D226MTRF | TMCMC1E226MTRF | TMCMB1D226MTRF | TMCMC1A226MTRF |
|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 20 V | 25 V | 20 V | 10 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1.7Ohm @ 100kHz | 1.1Ohm @ 100kHz | 1.7Ohm @ 100kHz | 1.7Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | 1411 (3528 Metric) | Nonstandard |
| Size / Dimension | 0.228" L x 0.126" W (5.80mm x 3.20mm) | 0.228" L x 0.126" W (5.80mm x 3.20mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.228" L x 0.126" W (5.80mm x 3.20mm) |
| Height - Seated (Max) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.083" (2.10mm) | 0.106" (2.70mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | C | C | B | C |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
