Please send RFQ , we will respond immediately.

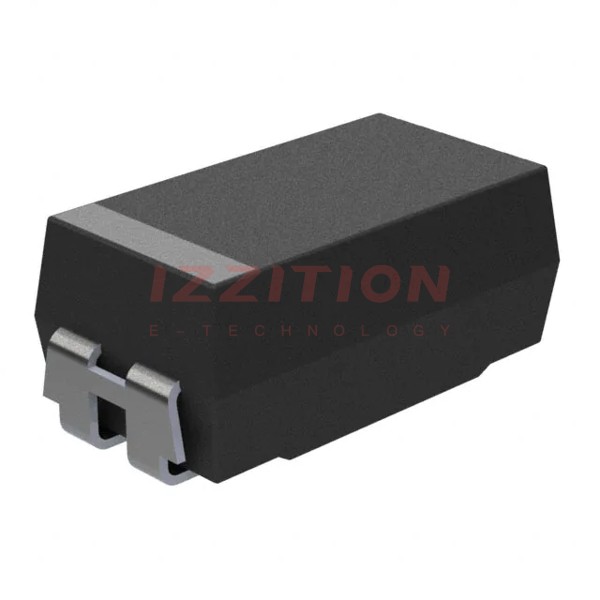

| Part Number | TMCMC0G227MTRF | TMCMC0J227MTRF | TMCMA0G227MTRF | TMCMB0G227MTRF |
|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 6.3 V | 4 V | 4 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 1.1Ohm @ 100kHz | 1.1Ohm @ 100kHz | 1.8Ohm @ 100kHz | 1.1Ohm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | 1206 (3216 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.228" L x 0.126" W (5.80mm x 3.20mm) | 0.228" L x 0.126" W (5.80mm x 3.20mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.071" (1.80mm) | 0.083" (2.10mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | C | C | A | B |
| Ratings | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
