Please send RFQ , we will respond immediately.

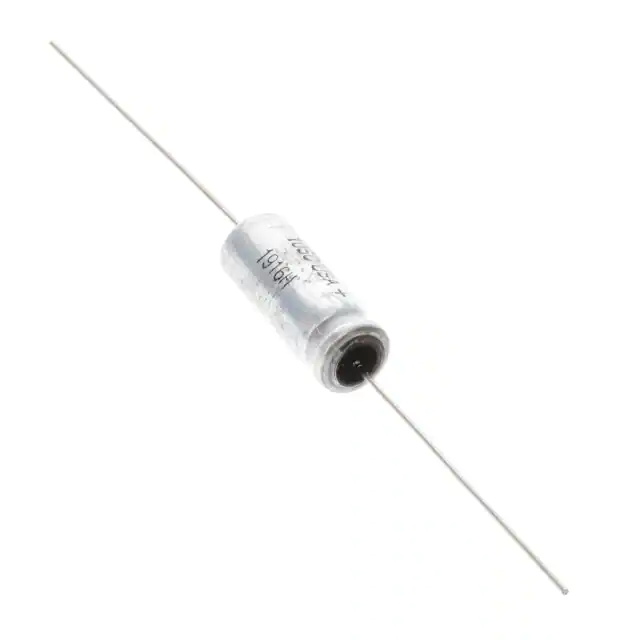

| Part Number | TE1207 | TE1307 | TE1208 | TE1209 | TE1207T | TE1207E | TE1107 | TE1204 | TE1206 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 25 µF | 50 µF | 35 µF | 50 µF | 25 µF | 25 µF | 400 µF | 10 µF | 20 µF |
| Tolerance | -10%, +75% | -10%, +75% | -10%, +75% | -10%, +75% | -10%, +75% | -10%, +75% | -10%, +75% | -10%, +75% | -10%, +75% |
| Voltage - Rated | 25 V | 50 V | 25 V | 25 V | 25 V | 25 V | 6 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | - | - | - | - | - | - | - | - |
| Ripple Current @ High Frequency | - | - | - | - | - | - | - | - | - |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | 0.354" Dia x 0.945" L (9.00mm x 24.00mm) | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | 0.315" Dia x 0.807" L (8.00mm x 20.50mm) | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | 0.354" Dia x 1.260" L (9.00mm x 32.00mm) | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
