Vishay Sprague-TE1068-E3 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	500 µF
Tolerance:	-10%, +75%
Voltage - Rated:	3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.354" Dia x 1.260" L (9.00mm x 32.00mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

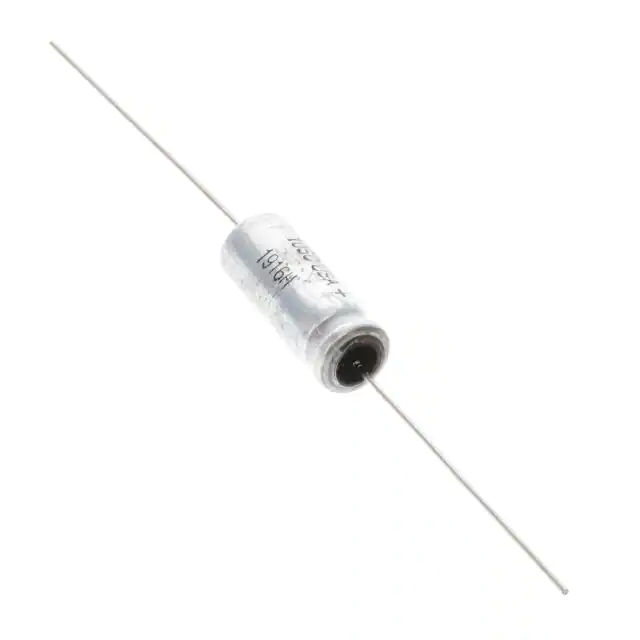

Vishay Sprague TE1068-E3
