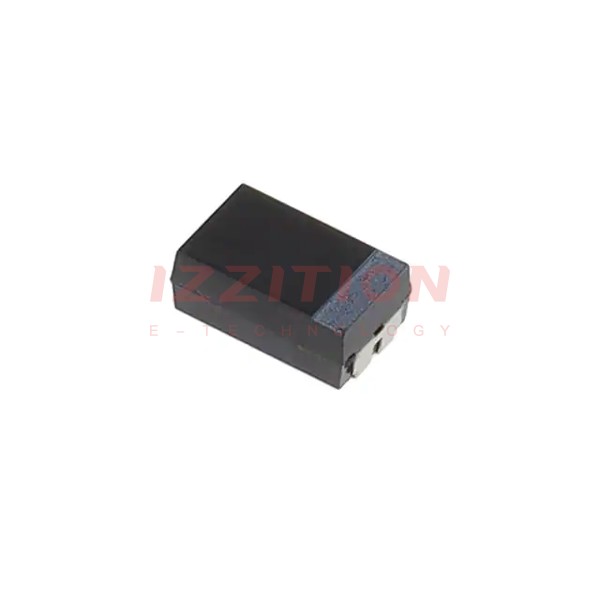

| Part Number | T55D477M2R5C0008 | T55D477M2R5C0009 | T55D477M2R5C0007 |
|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active |
| Capacitance | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V | 2.5 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100kHz | 9mOhm @ 100kHz | 7mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D | D | D |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
