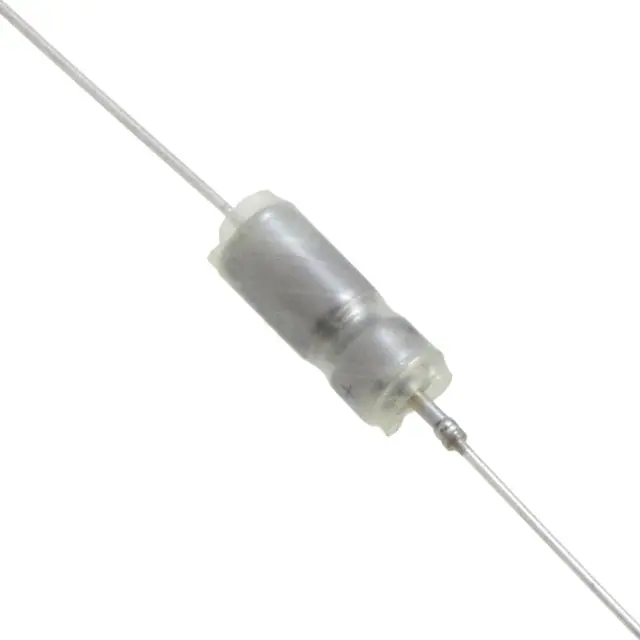

| Part Number | M39006/22-0565 | M39006/22-0065 | M39006/22-0165 | M39006/22-0265 | M39006/22-0365 | M39006/22-0465 | M39006/22-0505 | M39006/22-0525 | M39006/22-0560 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | EXXELIA | KYOCERA AVX | EXXELIA | EXXELIA | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 33 µF | 6.8 µF | 47 µF | 8.2 µF | 56 µF | 33 µF | 22 µF | 300 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50 V | 15 V | 75 V | 10 V | 60 V | 8 V | 15 V | 25 V | 30 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | - | 4.02Ohm | 6.83Ohm | 3.67Ohm | 6.47Ohm | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | 0.406" Dia x 1.126" L (10.31mm x 28.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | T1 | T1 | T3 | T1 | T1 | T1 | T1 | T1 | T4 |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum |
| Failure Rate | R (0.01%) | M (1%) | M (1%) | P (0.1%) | P (0.1%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) |
