Please send RFQ , we will respond immediately.

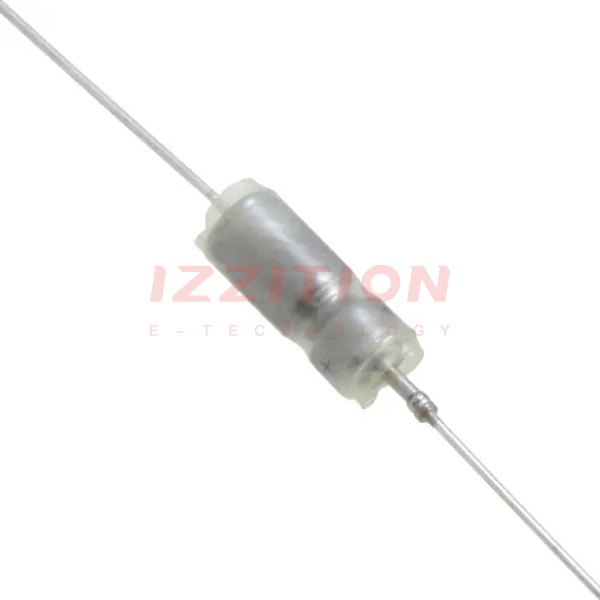

| Part Number | M39006/22-0525 | M39006/22-0625 | M39006/22-0565 | M39006/22-0025 | M39006/22-0125 | M39006/22-0225 | M39006/22-0325 | M39006/22-0425 | M39006/22-0505 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | EXXELIA | KYOCERA AVX | EXXELIA | EXXELIA | EXXELIA | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 4.7 µF | 10 µF | 56 µF | 10 µF | 68 µF | 15 µF | 3.6 µF | 33 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 25 V | 100 V | 50 V | 8 V | 50 V | 6 V | 30 V | 125 V | 15 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | - | - | - | 3.32Ohm | 5.31Ohm | 3.16Ohm | 4.42Ohm | 9.95Ohm | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | T1 | T1 | T1 | T1 | T3 | T1 | T1 | T1 | T1 |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum |
| Failure Rate | R (0.01%) | R (0.01%) | R (0.01%) | M (1%) | M (1%) | P (0.1%) | P (0.1%) | P (0.1%) | R (0.01%) |
