Please send RFQ , we will respond immediately.

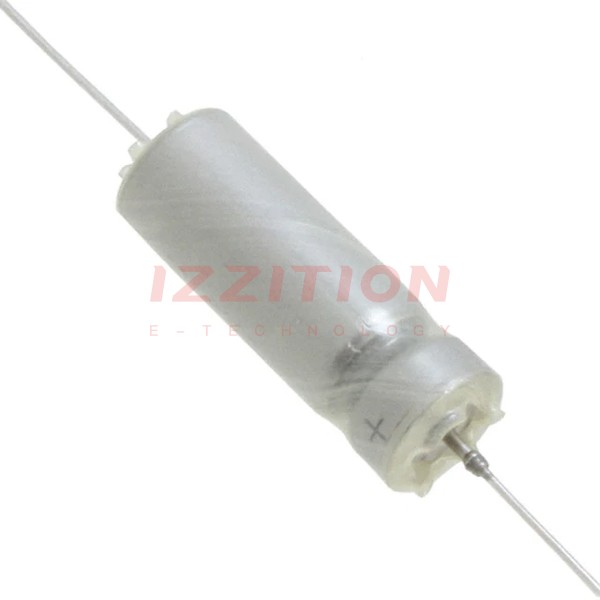

| Part Number | M39006/22-0160 | M39006/22-0360 | M39006/22-0660 | M39006/22-0560 | M39006/22-0165 | M39006/22-0167 | M39006/22-0168 | M39006/22-0190 | M39006/22-0162 | M39006/22-0110 | M39006/22-0130 | M39006/22-0140 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | EXXELIA | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 140 µF | 160 µF | 56 µF | 300 µF | 6.8 µF | 15 µF | 15 µF | 22 µF | 3.5 µF | 68 µF | 47 µF | 160 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±20% | ±10% | ±20% | ±10% | ±20% | ±20% | ±10% |
| Voltage - Rated | 60 V | 50 V | 125 V | 30 V | 75 V | 75 V | 75 V | 100 V | 75 V | 30 V | 50 V | 50 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | - | - | - | - | 6.83Ohm | 5.31Ohm | 5.31Ohm | 4.52Ohm | 9.48Ohm | 2.54Ohm | 3.11Ohm | 1.41Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.406" Dia x 1.126" L (10.31mm x 28.60mm) | 0.406" Dia x 1.126" L (10.31mm x 28.60mm) | 0.406" Dia x 1.126" L (10.31mm x 28.60mm) | 0.406" Dia x 1.126" L (10.31mm x 28.60mm) | 0.406" Dia x 0.766" L (10.31mm x 19.46mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.219" Dia x 0.453" L (5.56mm x 11.51mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.312" Dia x 0.641" L (7.92mm x 16.28mm) | 0.406" Dia x 1.062" L (10.31mm x 26.97mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | T4 | T4 | T4 | T4 | T3 | T2 | T2 | T2 | T1 | T2 | T2 | T4 |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum | High Reliability, Wet Tantalum |
| Failure Rate | M (1%) | P (0.1%) | R (0.01%) | R (0.01%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) |
