Vishay Sprague-94SVPD826X0025F12 - Aluminum - Polymer Capacitors Product Specifications and Latest Quotes

Type:	Polymer
Capacitance:	82 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	28mOhm
Lifetime @ Temp.:	2000 Hrs @ 125°C
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Applications:	General Purpose
Features:	-
Ripple Current @ Low Frequency:	60.1 mA @ 120 Hz
Ripple Current @ High Frequency:	1.202 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.500" (12.70mm)
Surface Mount Land Size:	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

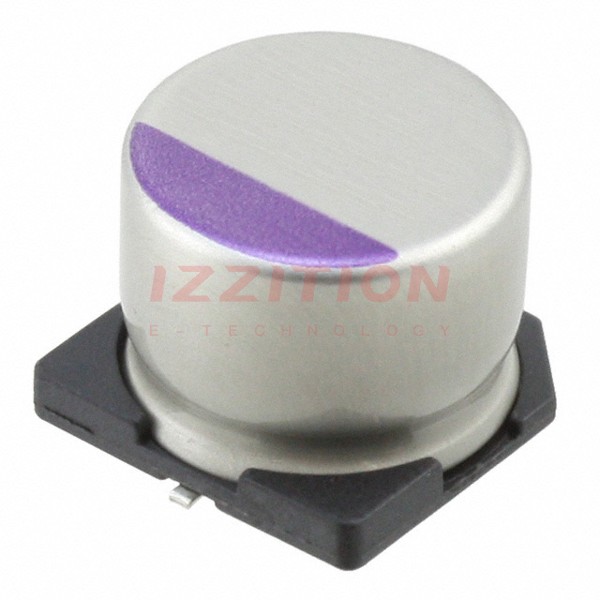

Vishay Sprague 94SVPD826X0025F12
