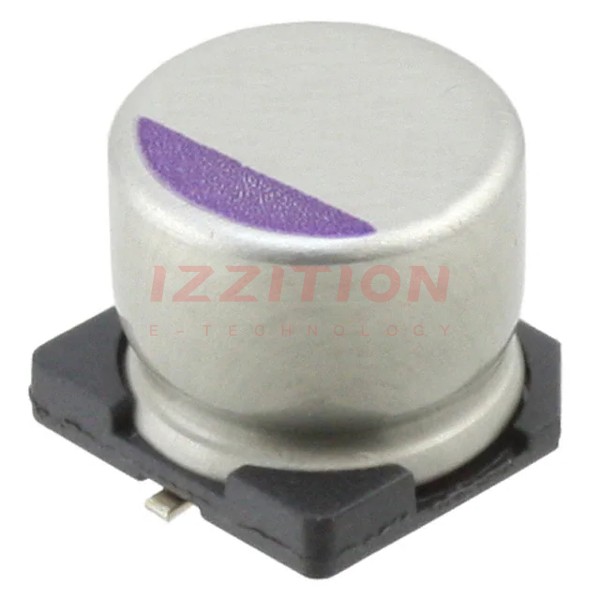

Vishay Sprague-94SVPD476X0025E12 - Aluminum - Polymer Capacitors Product Specifications and Latest Quotes

Type:	Polymer
Capacitance:	47 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	30mOhm
Lifetime @ Temp.:	2000 Hrs @ 125°C
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Applications:	General Purpose
Features:	-
Ripple Current @ Low Frequency:	47.15 mA @ 120 Hz
Ripple Current @ High Frequency:	943 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.472" (12.00mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

Vishay Sprague 94SVPD476X0025E12
