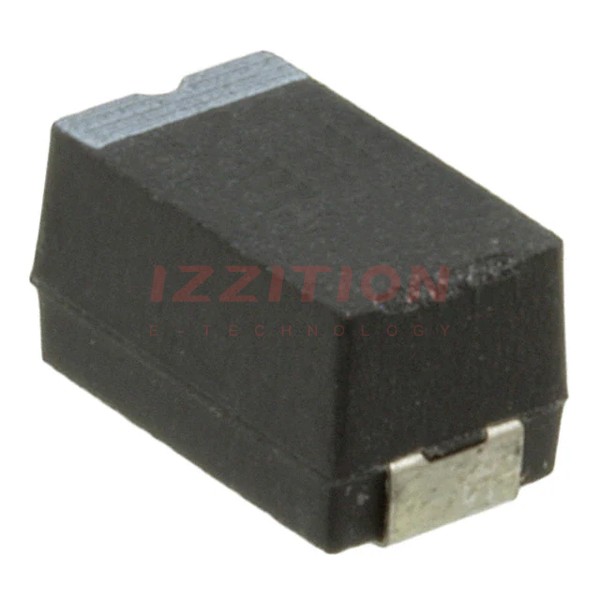

| Part Number | 893D226X9025E2TE3 | 893D226X9035E2TE3 | 893D226X0025E2TE3 | 893D226X9025D2TE3 |
|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±10% | ±10% | ±20% | ±10% |
| Voltage - Rated | 25 V | 35 V | 25 V | 25 V |
| Type | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 700mOhm | 600mOhm | 700mOhm | 700mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.170" (4.32mm) | 0.170" (4.32mm) | 0.170" (4.32mm) | 0.122" (3.10mm) |
| Lead Spacing | - | - | - | - |
| Manufacturer Size Code | E | E | E | D |
| Ratings | - | - | - | - |
| Features | Fail Safe with Built-in Fuse | Fail Safe with Built-in Fuse | Fail Safe with Built-in Fuse | Fail Safe with Built-in Fuse |
| Failure Rate | - | - | - | - |
