Please send RFQ , we will respond immediately.

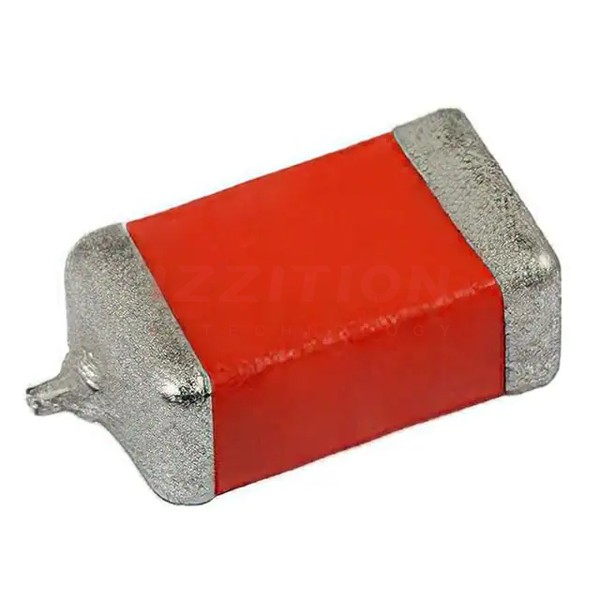

| Part Number | 695D106X9020F2T | 695D106X9025F2T | 695D156X9020F2T | 695D106X9020G2T | 695D106X0020F2T |
|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 15 µF | 10 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±20% |
| Voltage - Rated | 20 V | 25 V | 20 V | 20 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 1.8Ohm | 1.8Ohm | 1.5Ohm | - | 1.8Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2414 (6034 Metric) | 2414 (6034 Metric) | 2414 (6034 Metric) | 3010 (7625 Metric) | 2414 (6034 Metric) |
| Size / Dimension | 0.236" L x 0.135" W (6.00mm x 3.43mm) | 0.236" L x 0.135" W (6.00mm x 3.43mm) | 0.236" L x 0.135" W (6.00mm x 3.43mm) | 0.299" L x 1.000" W (7.60mm x 2.54mm) | 0.236" L x 0.135" W (6.00mm x 3.43mm) |
| Height - Seated (Max) | 0.085" (2.16mm) | 0.085" (2.16mm) | 0.085" (2.16mm) | 0.115" (2.92mm) | 0.085" (2.16mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | F | F | F | G | F |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
