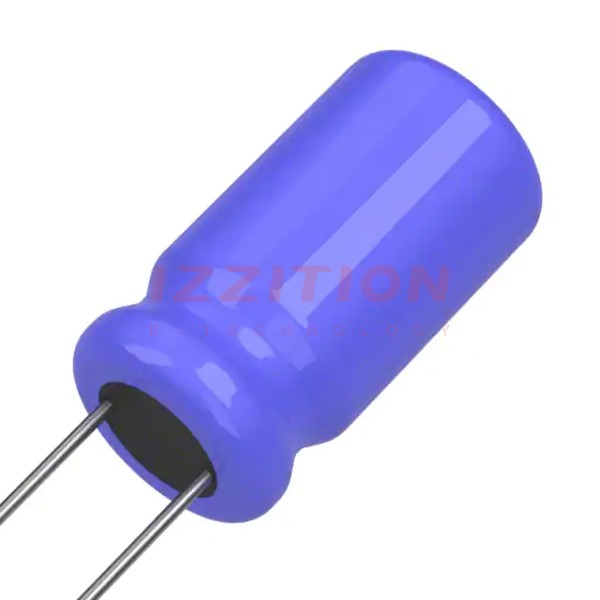

Vishay Sprague-678D476M063CD3DE3 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	47 µF
Tolerance:	±20%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	1Ohm @ 20Hz
Lifetime @ Temp.:	3000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	259 mA @ 120 Hz
Ripple Current @ High Frequency:	370 mA @ 100 kHz
Impedance:	180 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.740" (18.80mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Vishay Sprague 678D476M063CD3DE3
