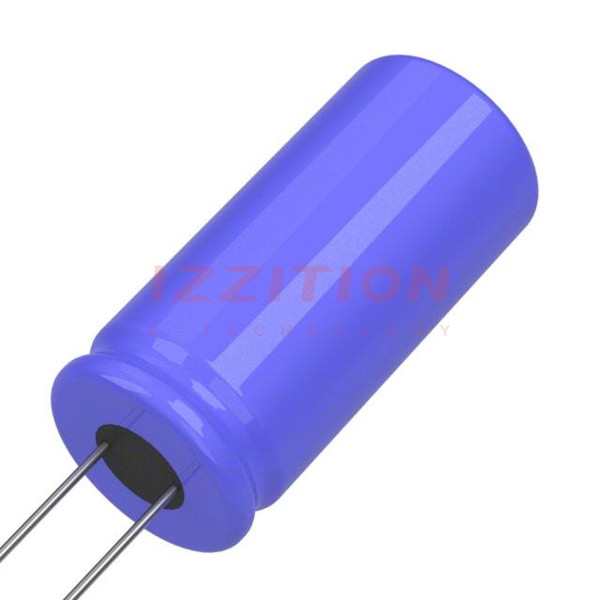

| Part Number | 678D338M016FR4D | 678D338M016FR3D |
|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active |
| Capacitance | 3300 µF | 3300 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 74mOhm @ 20Hz | 74mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.358 A @ 120 Hz | 1.358 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.94 A @ 100 kHz | 1.94 A @ 100 kHz |
| Impedance | 34 mOhms | 34 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) | 1.575" (40.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
