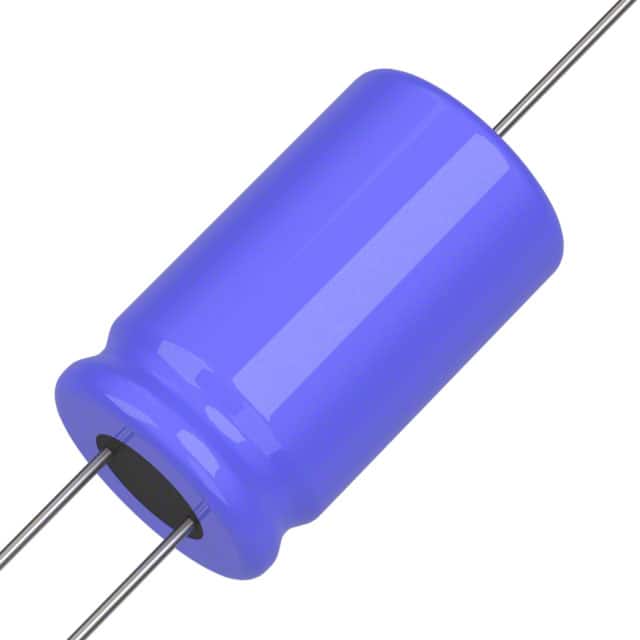

Vishay Sprague-678D337M050EK4J - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	330 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	150mOhm @ 20Hz
Lifetime @ Temp.:	4000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	882 mA @ 120 Hz
Ripple Current @ High Frequency:	1.26 A @ 100 kHz
Impedance:	52 mOhms
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	1.032" (26.20mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Vishay Sprague 678D337M050EK4J
