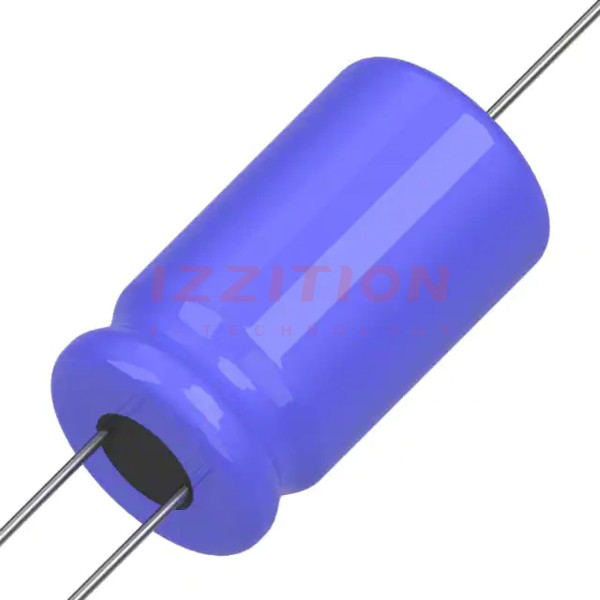

| Part Number | 678D337M025DG4J | 678D337M025DG4D |
|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active |
| Capacitance | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 270mOhm @ 20Hz | 270mOhm @ 20Hz |
| Lifetime @ Temp. | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 553 mA @ 120 Hz | 553 mA @ 120 Hz |
| Ripple Current @ High Frequency | 790 mA @ 100 kHz | 790 mA @ 100 kHz |
| Impedance | 76 mOhms | 76 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 0.846" (21.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
