Vishay Sprague-678D228M025FV3D - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	62mOhm @ 20Hz
Lifetime @ Temp.:	4000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.554 A @ 120 Hz
Ripple Current @ High Frequency:	2.22 A @ 100 kHz
Impedance:	28 mOhms
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.709" Dia (18.00mm)
Height - Seated (Max):	1.693" (43.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

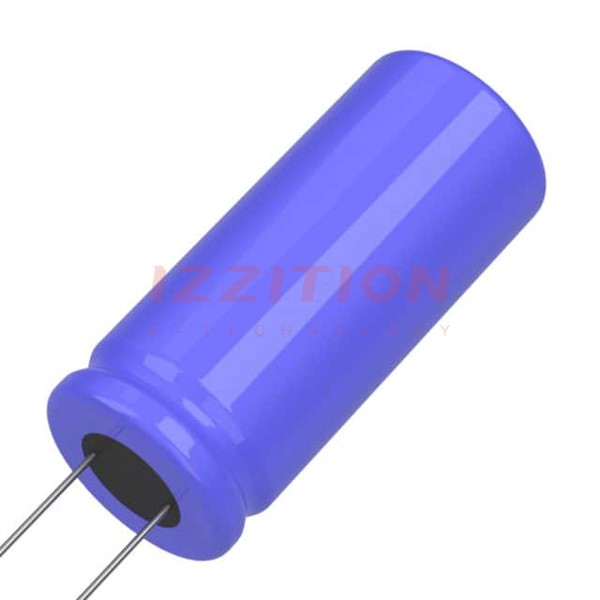

Vishay Sprague 678D228M025FV3D
