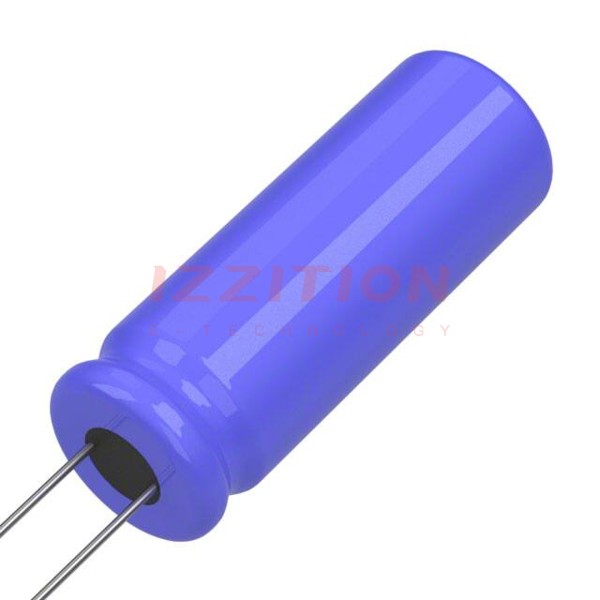

| Part Number | 678D227M063DT4D | 678D227M063DT3D |
|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active |
| Capacitance | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 20Hz | 160mOhm @ 20Hz |
| Lifetime @ Temp. | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz | 1.1 A @ 100 kHz |
| Impedance | 54 mOhms | 54 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.346" (34.20mm) | 1.417" (36.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
