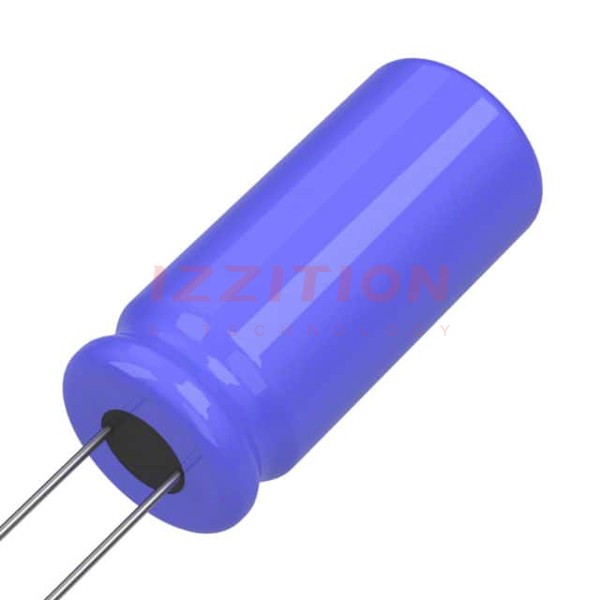

| Part Number | 678D108M016DM3D | 678D108M016DM5D | 678D108M016DM4D | 678D108M010DM3D |
|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1000 µF | 1000 µF | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | 130mOhm @ 20Hz | 130mOhm @ 20Hz | 130mOhm @ 20Hz | 120mOhm @ 20Hz |
| Lifetime @ Temp. | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz | 700 mA @ 120 Hz | 700 mA @ 120 Hz | 686 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz | 1 A @ 100 kHz | 1 A @ 100 kHz | 980 mA @ 100 kHz |
| Impedance | 65 mOhms | 65 mOhms | 65 mOhms | 61 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) | 1.161" (29.50mm) | 1.102" (28.00mm) | 1.161" (29.50mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
