Vishay Sprague-672D477F012DM5D - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	470 µF
Tolerance:	-10%, +50%
Voltage - Rated:	12 V
ESR (Equivalent Series Resistance):	310mOhm @ 120Hz
Lifetime @ Temp.:	-
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	945 mA @ 120 Hz
Ripple Current @ High Frequency:	1.35 A @ 100 kHz
Impedance:	120 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	1.161" (29.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

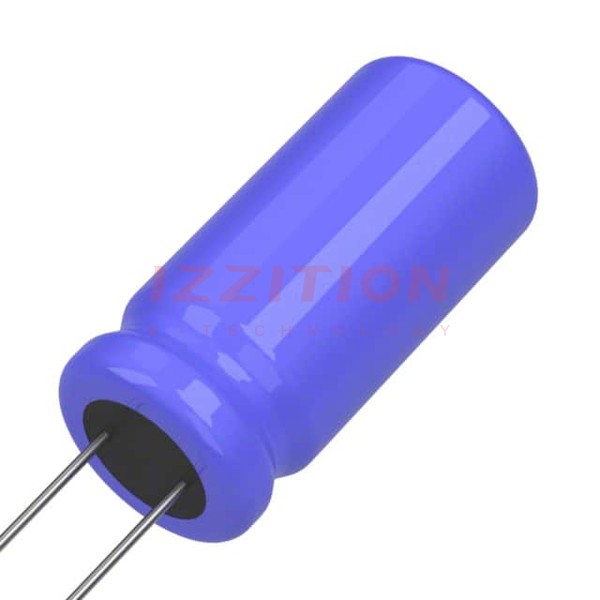

Vishay Sprague 672D477F012DM5D
