Please send RFQ , we will respond immediately.

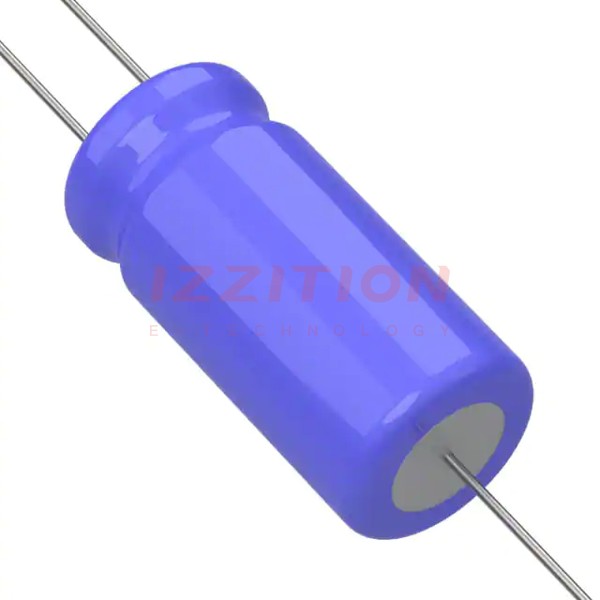

| Part Number | 672D336F100DM5J | 672D336H100DM5J | 672D336F100DM5D |
|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active |
| Capacitance | 33 µF | 33 µF | 33 µF |
| Tolerance | -10%, +50% | - | -10%, +50% |
| Voltage - Rated | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | 2.55Ohm @ 120Hz | - | 2.55Ohm @ 120Hz |
| Lifetime @ Temp. | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 396 mA @ 120 Hz | - | 396 mA @ 120 Hz |
| Ripple Current @ High Frequency | 720 mA @ 100 kHz | - | 720 mA @ 100 kHz |
| Impedance | 390 mOhms | - | 390 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) | 1.161" (29.50mm) | 1.161" (29.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
