Please send RFQ , we will respond immediately.

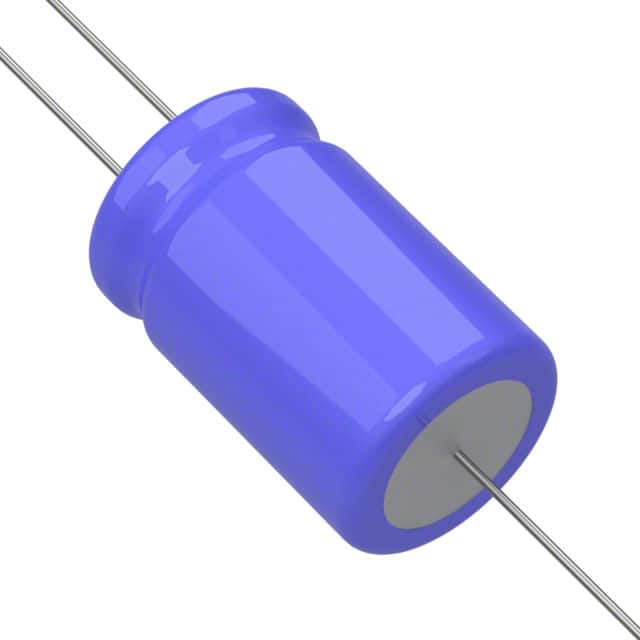

| Part Number | 672D227H040EK5J | 672D227F040EK5J | 672D227H040EK5C | 672D227H040EK5D |
|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF | 220 µF |
| Tolerance | - | -10%, +50% | - | - |
| Voltage - Rated | 40 V | 40 V | 40 V | 40 V |
| ESR (Equivalent Series Resistance) | - | 480mOhm @ 120Hz | - | - |
| Lifetime @ Temp. | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | 1.155 A @ 120 Hz | - | - |
| Ripple Current @ High Frequency | - | 1.65 A @ 100 kHz | - | - |
| Impedance | - | 120 mOhms | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.098" (27.90mm) | 1.098" (27.90mm) | 1.098" (27.90mm) | 1.098" (27.90mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
