Vishay Sprague-672D226F060CG5D - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	22 µF
Tolerance:	-10%, +50%
Voltage - Rated:	60 V
ESR (Equivalent Series Resistance):	4.6Ohm @ 120Hz
Lifetime @ Temp.:	-
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	280 mA @ 120 Hz
Ripple Current @ High Frequency:	400 mA @ 100 kHz
Impedance:	1 Ohms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.906" (23.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

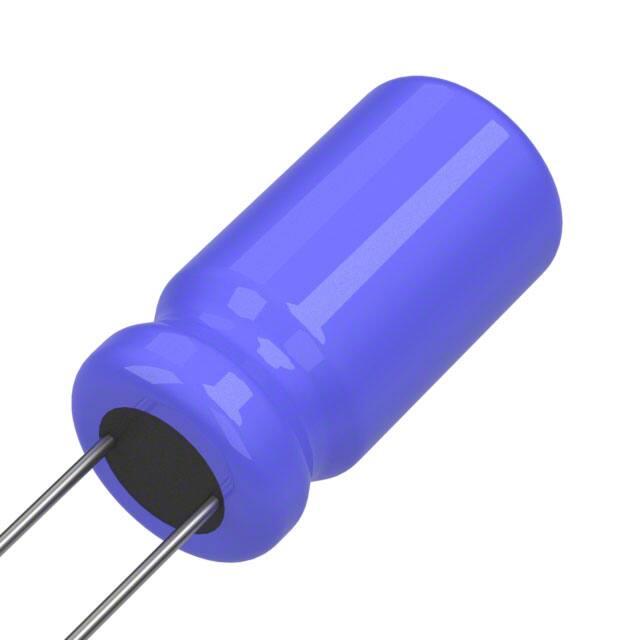

Vishay Sprague 672D226F060CG5D
