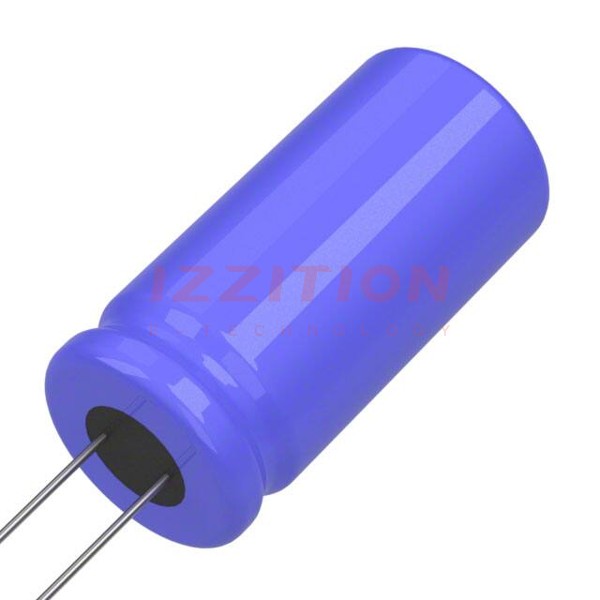

| Part Number | 672D127F100ET5D | 672D127F100ET3D |
|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active |
| Capacitance | 120 µF | 120 µF |
| Tolerance | -10%, +50% | -10%, +50% |
| Voltage - Rated | 50 V | 100 V |
| ESR (Equivalent Series Resistance) | 680mOhm @ 120Hz | 680mOhm @ 120Hz |
| Lifetime @ Temp. | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 1.5 A @ 100 kHz |
| Impedance | 170 mOhms | 170 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) | 1.417" (36.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
